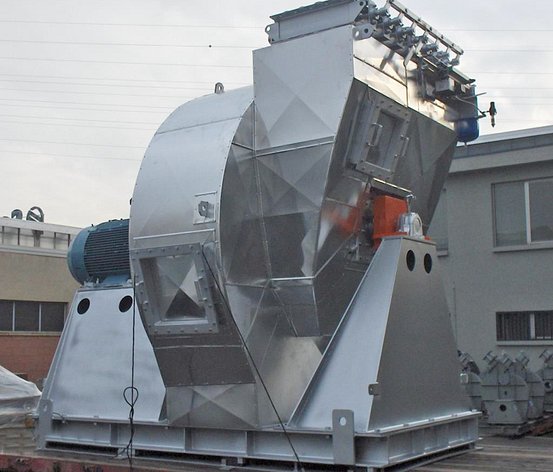

EGYPT 2008 – Site: PORTO SAID
Fan Data Design |
Fan Type: H 180 |
Arrangement: 7 |
Service: Induced Draft Fan |
Blades Type: Backwardly Inclined |
Design Mechanical Pressure: 2000 mmH2O |
Design Mechanical Temperature: 300°C |
Fluid handled: Flue Gas |
Flow Rate: 54,200 m3/h |
Fluid Temperature: 220°C |
Static differential pressure: 800 mmH2O |
Speed: 1490 rpm |
Installed power: 200 kW |

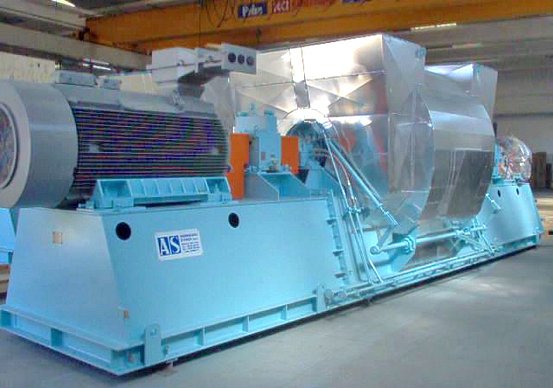

ITALY 2011 – Site: GAZOLDO DEGLI IPPOLITI
Fan Data Design |
Fan Type: BCSN 542 DWDI |
Arrangement: 7 DWDI - Double driver |
Service: Combustion Air Fan |
Blades Type: Hollow Airfoil |
Fluid handled: Fresh Air |
Flow Rate: 300,000 m3/h |
Static differential pressure: 900 mmwg |
Speed: 1780 rpm |
Installed power: 1100 kW |
Site: Tasnee Petrochemical Complex, Al Jubail |
BUSTO ARSIZIO 2006
AL JUBAIL 2010
Fan Data Design | |||
Fan Type: BCSN 660 DWDI | |||
Arrangement: 7 DWDI | |||
Service: Combustion Air Fan | |||
Blades Type: Hollow Airfoil | |||
Fluid handled: Fresh Air | |||
Flow Rate: 300,000 m3/h | |||
Static differential pressure: 600 mmwg | |||
Speed: 985 rpm | |||
|
|||
QATAR 2004
NETHERLANDS 2009 – Site: IJMUIDEN
IRAN 2011 – Site: KERMAN
Data Design |
Bag Filter Type : AFIM/2 2058/6 |
Application : Dedusting System From Waste Incineration |
Flow Rate : 139.200 m3/h |
Fluid : Acid fumes + heavy metals |
Design Pressure: 1500 mmH2O |
Design Tempreature : 250⁰C |
Material : S 235 JR |
Site : Bourjoin Jallieu (France) |

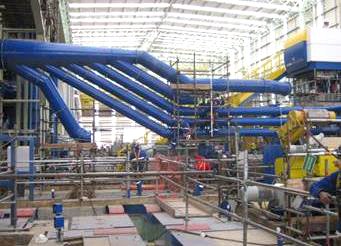

BRAZIL. 2012
Application: Scale Dust Exhaust System Hot Skin Pass
Customer: DANIELI
Flowrate: 75.000 m3/h at 20°C
Scope of supply: Bag Filter, Dust Discharge System, Fan, Stack, Suction Ducts and Hoods.
UAE 2012 – site: RUWAIS & SHAH
MAIN JOB GALLERY
FRANCE 2003 – Site: BOURGOIN JALLIEU
Application: Recycle Gas Filter |
Customer: UHDE |
Flowrate: 55.000 kg/h |
Design Pressure: 5 barg Design temperature: 120 °C |
Scope of supply: - Pressure Bag Filter for Olefins Plant - ASME “U” Stamp code |

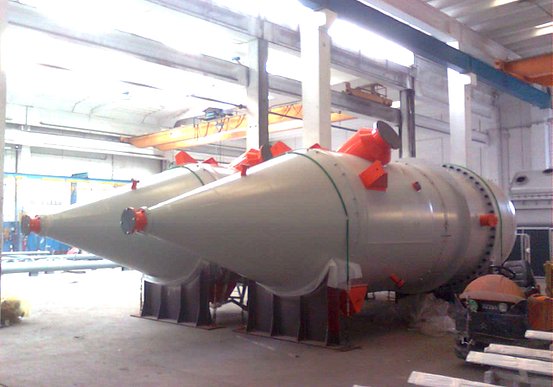

ITALY 1994 – Site: BRESCIA
Application: Barrier Product Bag Filter |
Customer: PETROCHINA |
Flowrate: 3.600 Am3/h |
Design Pressure: 42 barg / F.V. Design temperature: -45/150 °C |
Fluid: HC + PP Scope of supply: - High Pressure Bag Filter |
EGYPT 2008 – Site: PORTO SAID
UAE 2012 – Site: BOROUGE 3
Application: Product Receiver |
Customer: TECNIMONT |
Flowrate: 11.000 Am3/h @ 150°C |
Design Pressure: 10 barg / F.V |
Fluid: HC + PP |
CHINA 2010 – Site: DAQING

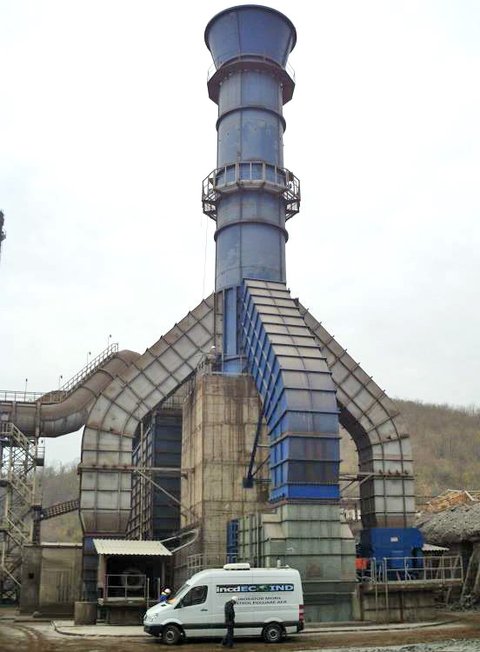

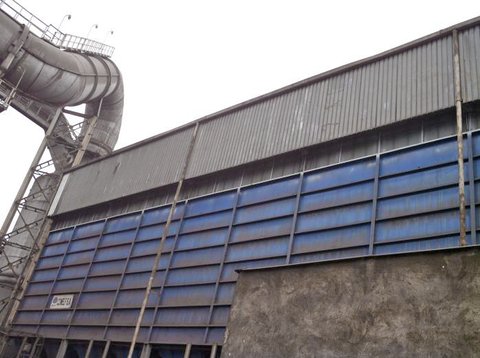

ROMANIA 2011 – Site: RESITA
Application: Revamping EAF + LF Dedusting System
Customer: TMK ROMANIA
Flowrate: 1.100.000 Am3/h @ 60°C
Scope of supply: -New Part of Water Cooled Ducts - New Part of Water Cooled Ducts - Bag Filter Revamping - New Main Fan - LF Top Enclosure - LF Booster Fan
